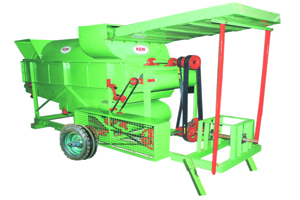

Axial Flow Paddy Thresher

KEW make Axial Flow Paddy Thresher is suitable to thresh Paddy and Black Gram in the field. It is operated by 15 HP Air-Cooled Diesel Engine / 35 HP above Tractor PTO. It consists of Feeding Chute, Threshing Cylinder (Peg Type), Concave, Oscillating Box, Winnowing and Cleaning attachment.

FEATURES :

  • » KEW make Thresher separates Pure Grains / Straw / Dust / other waste and send them out through their respective mouths as according to the crop.
  • » It can thresh Paddy 30 – 40 Quintals (approximate) per hour and Black Gram 15 - 20 Quintals (approximate) per hour.
  • » Threshing efficiency is 100% and the Cleaning efficiency is 99%.
  • » Thresher can be towed by tractor from place to place to any corner of the field.
  • » The thresher gives best result with lesser fuel consumption.
  • » To thresh other crops, change the Sieve and adjust the concave clearance, cylinder speed.
  • » Threshing is totally completed in a single pass.
  • » Threshing does not damage the edges of the grains, hence suitable for seed purpose.
  • » Thresher can be coupled with all types of tractor’s PTO.

Specification :

  Type   Peg Type (Axial Flow)
  Overall Dimension   Length 4200mm x Width 1850mm x Height 2240mm, Ground Clearance 360mm (with Wheels)
  Weight   1250 Kg (approximate)
  Output Capacity   Paddy 30 - 40 Quintals (approximate) per hour, Black Gram 15 – 20 Quintals (approximate) per hour.
  Power Source   15 HP Air-Cooled Diesel Engine / 35 HP above Tractor PTO.
  Transporting Unit   Axle with Pneumatic Wheels 2 Nos. (600 x 16.0 Tyre, Tube and Disc).
