KOVAI ENGINEERING WORKS (P) LTD.,
An ISO Certified Company

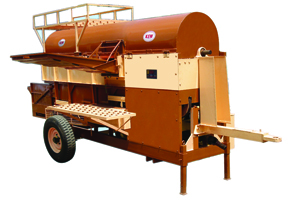

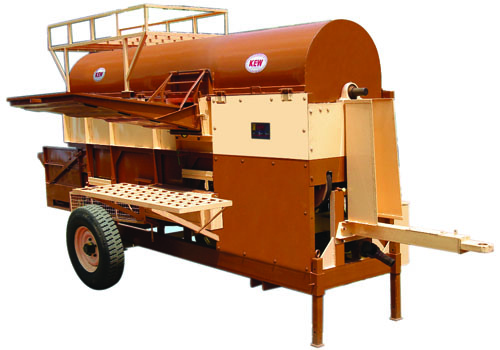

High Capacity Multi Crop Thresher

KEW make High Capacity Multi-Crop Thresher is suitable to thresh Paddy, Maize, Jowar, Ragi, Pearl Millet (Kambu), Soya, Groundnut, Coriander, Wheat, Sunflower, Black Gram, Bengal Gram, Green Gram, Horse Gram etc., in the field. It is operated by 35 HP and above Tractor PTO. It consists of Feeding Chute, Threshing Cylinder (Peg Type), Concave, Oscillating Box, Winnowing (Heavy Blowers) and Cleaning attachment.

FEATURES :

  • » KEW make Thresher separates Pure Grains / Straw / Husk / Empty Hob / Dust / other waste and send them out through their respective mouths as according to the crop.
  • » It can thresh Paddy 50 – 60 Quintals (approximate) per hour, Maize 70 – 80 Quintals (approximate) per hour and other grains 20 – 40 Quintals (approximate) per hour.
  • » The threshing efficiency is 100% and the cleaning efficiency is 98%.
  • » It can thresh the Maize with Husk.
  • » To thresh other crops, change the Sieve and adjust the concave clearance, cylinder speed.
  • » The Thresher is maintenance free and 100% safe for operators.
  • » Threshing is totally completed in a single pass.
  • » Threshing does not damage the edges of the grains, hence suitable for seed purpose.
  • » Thresher can be coupled with all types of tractor’s PTO.

Specification :

  Type   Peg Type(Axial Flow)
  Overall Dimension   Length 4950mm x Width 1720mm x Height 2380mm, Ground Clearance 400mm (with Wheels)
  Weight   2700 Kg (approximate)
  Output Capacity   Paddy 50 - 60 Quintals (approximate) per hour, Maize 70 - 80 Quintals per hour, other grains 20 – 40 Quintals (approximate) per hour.
  Power Source   35 HP and above Tractor PTO.
  Transporting Unit   Axle with Pneumatic Wheels 2 Nos (750 x 16.0 Tyre, Tube and Disc).
