KOVAI ENGINEERING WORKS (P) LTD.,
An ISO Certified Company
Shredder Models



3 HP Electric Motor Model / 5 HP Diesel Engine Model / Mini-Tractor PTO Operated Model

KEW make 3 HP Electric Motor / 5 HP Diesel Engine Shredder is suitable to shred agricultural waste like dried leaves, small branches of trees (upto 50mm Diameter), mulberry stem and cut pieces of coconut fronds etc., The power from the prime mover is transmitted to the shredder assembly. The Shredder assembly consists of 4 square plates which are connected by 4 nos. of stainless steel rods. Each rod has 9 nos. of rectangular blades, the total number of blades is 36 nos.

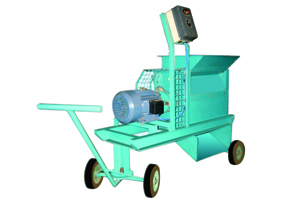

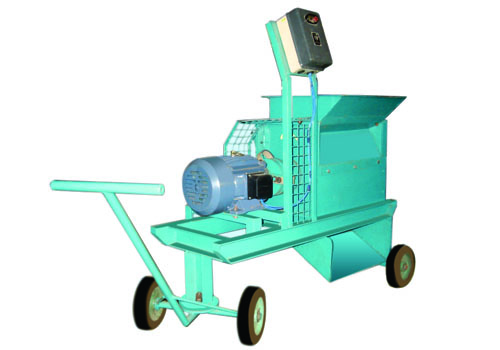

3 HP Electric Motor Model

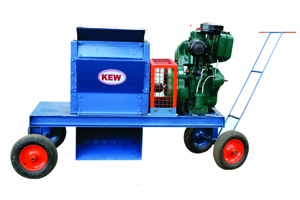

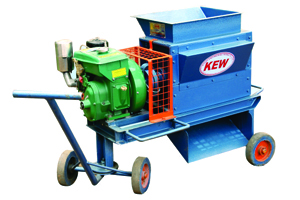

5 HP Diesel Engine Model



Specification :

  Type   Electric Motor / Diesel Engine operated
  Overall Dimension   Length 1150mm x Width 400mm x Height 900mm
  Weight   150 Kg (approximate without Prime mover)
  Output Capacity   200 – 250 kg / hour (approximate)
  Power requirement   3 HP Electric / 5 HP Diesel Engine
  Wheel Type   Caster 4 Nos. (front swivel and rear fixed)



10 HP Electric Motor Model / 12 HP Diesel Engine Model

KEW make 10 HP Electric Motor / 12 HP Diesel Engine Shredder is suitable to shred agricultural waste like dried leaves, small branches of trees (upto 75mm Diameter), mulberry stem, coconut fronds, harvested banana trees and papaya trees etc., The power from the prime mover is transmitted to the shredder assembly. The Shredder assembly consists of 4 square plates which are connected by 4 nos. of stainless steel rods. Each rod has 12 nos. of heavy rectangular blades, the total number of blades is 48 nos.

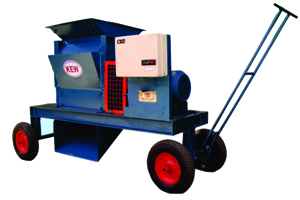

10 HP Electric Motor Model

12 HP Diesel Engine Model

FEATURES :

  • » Agricultural farm waste and garden waste etc., both dry and wet can be converted into organic manure by the way of shredding them into small pieces and getting them decomposed.
  • » The shredded waste can be spread on the field as organic manure to increase the moisture content, and fertility of the soil, simultaneously reducing the usage of chemical fertilizers.
  • » The shredding efficiency is 100%.
  • » This machine is also suitable for preparing vermi compost.
  • » It is mounted on Caster Wheels / Pneumatic Wheels (4 Nos.) for towing.

Specification :

  Type   Electric Motor / Diesel Engine operated
  Overall Dimension   Length 1500mm x Width 575mm x Height 1225mm
  Weight   350 Kg (approximate without Prime mover)
  Output Capacity   400 – 500 kg / hour (approximate)
  Power requirement   10 HP Electric / 12 HP Diesel Engine
  Wheel Type   Pneumatic 4 Nos. (front swivel and rear fixed)
