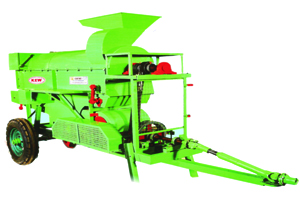

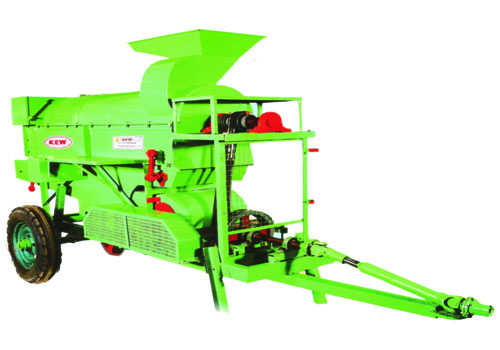

Maize Dehusker Sheller

KEW make Maize Dehusker Sheller is suitable to dehusk and shell Maize, thresh Jowar, Pearl Millet (Kambu), Sunflower in the field. It is operated by 35 HP and above Tractor PTO. It consists of Feeding Chute, Threshing Cylinder (Peg Type), Concave, Oscillating Box, Winnowing and Cleaning attachment.

FEATURES :

  • » KEW make Maize Dehusker Sheller separates Pure Grains, Husk, Empty Hob and send them out through their respective mouths.
  • » It can dehusk and shell Maize 25 – 35 Quintals (approximate) per hour and thresh other grains 20 – 25 Quintals (approximate) per hour.
  • » The dehusking & shelling / threshing efficiency is 100% and the cleaning efficiency is 98%.
  • » To thresh other crops, change the Sieve and adjust the cylinder speed.
  • » It ensures 100% safety for operators.
  • » Threshing is totally completed in a single pass.
  • » Threshing does not damage the edges of the grains, hence suitable for seed purpose.
  • » It can be coupled with all types of tractor’s PTO.

Specification :

  Type   Peg Type (Axial Flow)
  Overall Dimension   Length 4590mm x Width 1575mm x Height 2400mm
  Weight   850 Kg
  Output Capacity   Maize 25 – 35 Quintals (approximate) per hour and other grains 20 – 25 Quintals (approximate) per hour.
  Power Source   35 HP and above Tractor PTO.
  Transporting Unit   Axle with Pneumatic Wheels 2 Nos. (600 x 16.0 Tyre, Tube and Disc).
